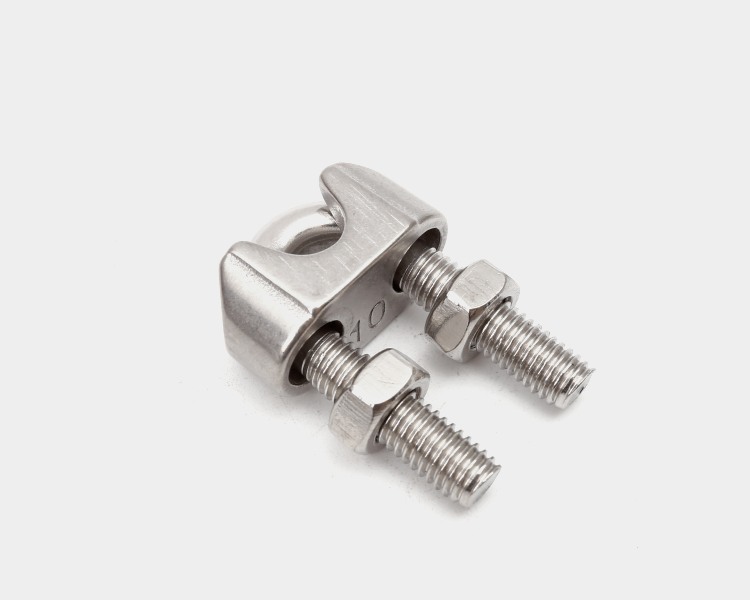

Stainless Steel Wire Rope Clip

A stainless steel wire rope clip is a U-shaped bolt with a special insert that is specifically designed to clamp the wire rope on itself. Stainless steel wire rope clips are made from stainless steel, such as 304 or 316, which has advantages of corrosion resistance, durability and smooth and shiny surface. KooChii®supply clips with a wide range of diameter from 2.0mm to 32.0mm.

Item

Stainless Steel Wire Rope Clip

Category

Wire Rope Fittings

Origin

Made in China

Product Description Specification

Stainless steel wire rope clips are used to clamp the ends of wire rope or cable. Most of the time to secure wire rope you will need at least two or three wire rope clips to secure the ends to the length of the wire rope. Adding a wire rope thimble to the clip can help lengthen the service life of the wire rope by adding a layer of protection to the rope so it doesn’t get worn as quickly.
KooChii® is able to supply kinds of types of stainless steel wire rope clips, such as DIN741, JIS, US Type, Simplex, Duplex clips, of which size is from M2.0mm to M32.0mm.

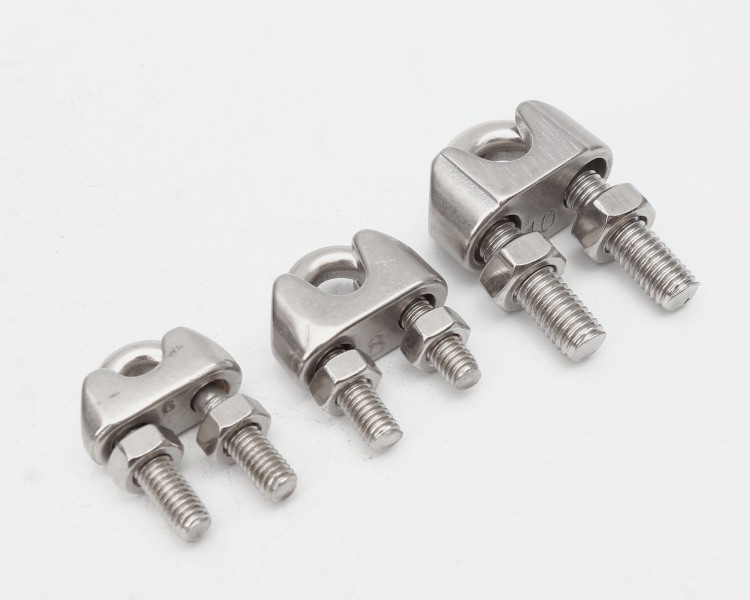

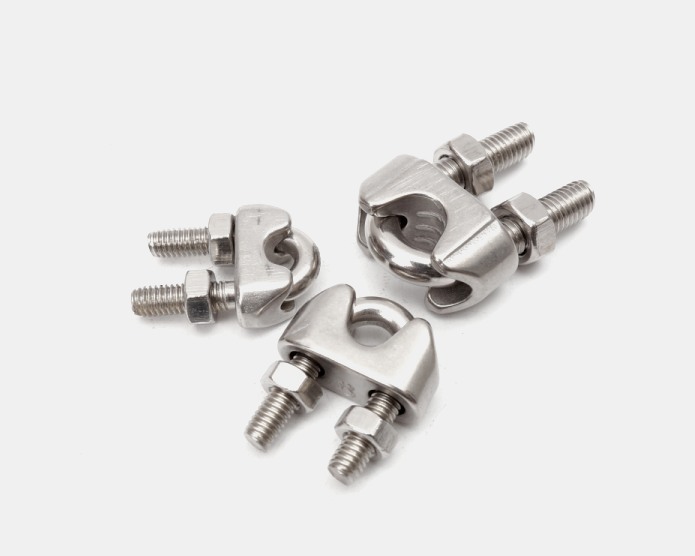

Stainless Steel Wire Rope Clip

Stainless Steel Wire Rope Clip Specification (DIN741:1972 Standard)
Size (M)	Rope Diameter (mm)	Dimensions (mm) (A×B×C)	Weight (kg)	Material
M3	3-4	15.5×10×19	0.007	AISI 304/316
M4	4-5	20×10×23	0.012	AISI 304/316
M5	5-6	23×10×29	0.017	AISI 304/316
M6	6-8	26×11×33.5	0.028	AISI 304/316
M8	8-10	29×15×35	0.037	AISI 304/316
M10	10-12	34×17×44	0.068	AISI 304/316
M12	12-14	40×20.5×55	0.124	AISI 304/316
M14	14-16	43×21.5×56	0.136	AISI 304/316
M16	16-18	48×24×63	0.402	AISI 304/316
M18	18-20	52×26×70	0.601	AISI 304/316
M20	20-22	55×28×76	0.730	AISI 304/316
M22	22-24	58×30×80	0.860	AISI 304/316
M24	24-26	62×32×85	1.020	AISI 304/316
M30	30-32	70×35×100	1.500	AISI 304/316
M36	35-40	80×40×115	2.050	AISI 304/316

Notes:
1. Parameters comply with DIN741:1972 standard for wire rope clips.
2. Dimensions (A=Width, B=Thickness, C=Length) and weights are derived from typical specifications.
3. Material grades AISI 304/316 correspond to SUS304/SUS316.
4. The above dimensions are for reference only. Please confirm the specific dimensions before placing an order.

Item	Stainless Steel Wire Rope Clip
Type	DIN741; JIS; US Type; Simplex; Duplex
Material	AISI302/AISI304(EN1.4301)/AISI316(EN1.4401) etc.
Size	M2.0-32.0mm
Conditions	Bright; Smooth
Packing	PE plastic bag; Carton; Pallet or Crate; as per customers' requests
