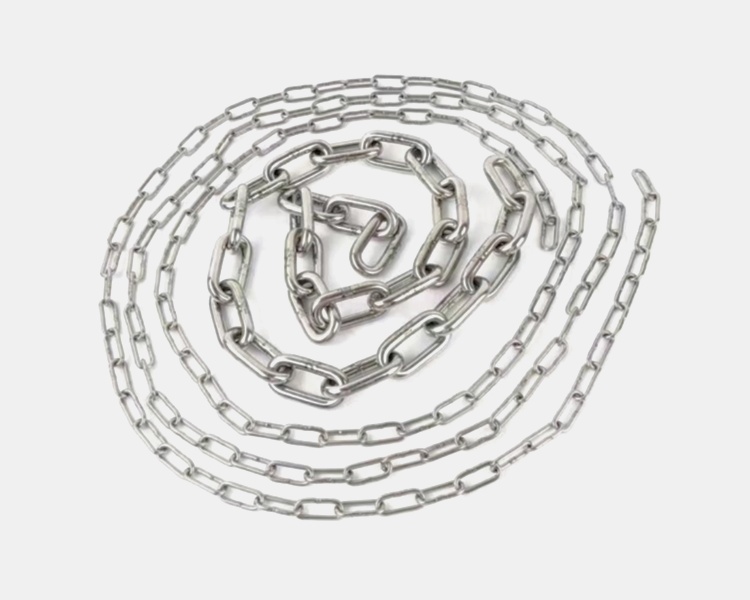

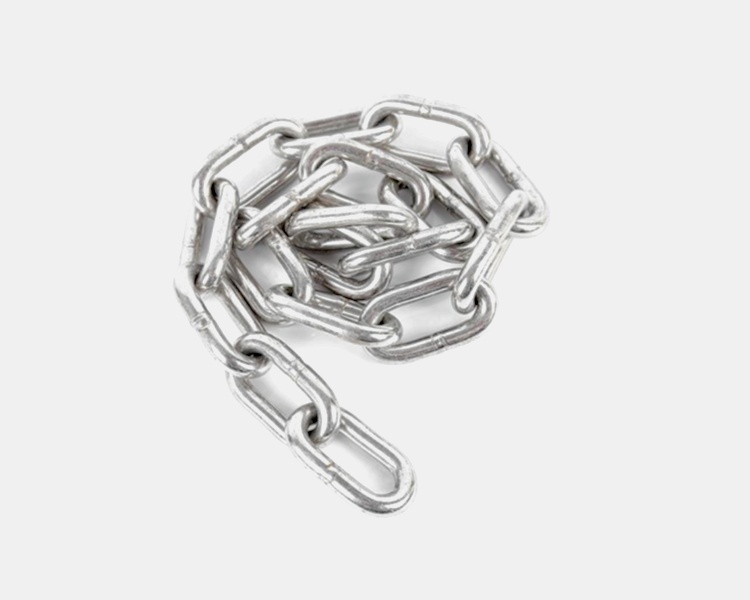

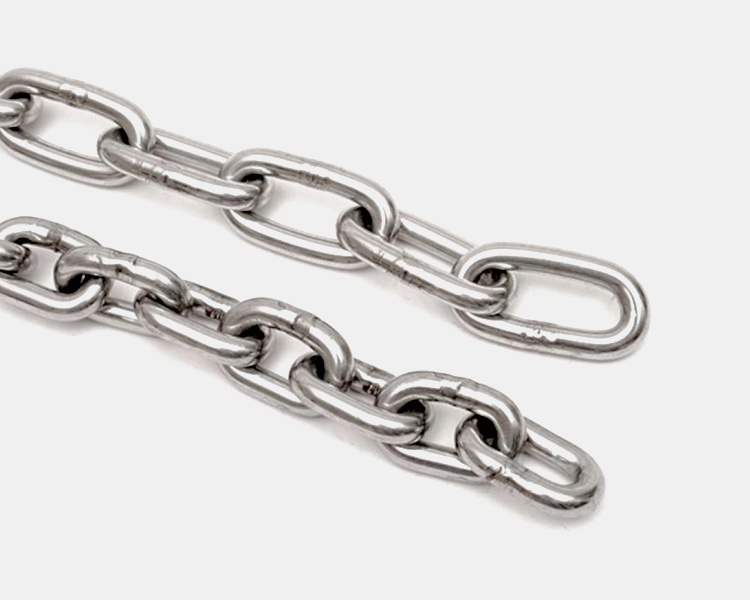

Stainless steel link chain has the advantages of acid and alkali corrosion resistance, high strength, wear resistance and high safety. So it is suitable for use in outdoor environment where rust prevention is needed. Stainless steel link chain is chiefly used in areas where exposure to water/sea water such as boating, yachting and the marine environment. It is also widely used for marine, wastewater and food handling as well as railing purposes and light weight lifting purposes.
KooChii® is able to supply stainless steel chain from 1.5mm to 40mm wire rod thickness.
Stainless Steel Chain Specifications (DIN 766-1986)
Diameter
(mm) |
Material
(AISI) |
Breaking Strength
(kN) |
Inner Width
(mm) |
Outer Width
(mm) |
Pitch
(mm) |
| 1.5 | 304/316 | 1.8 | 3.2±0.1 | 5.0±0.2 | 6.5±0.3 |
| 2 | 304/316 | 3.2 | 5.0±0.1 | 8.0±0.2 | 10.0±0.3 |
| 3 | 304/316 | 7.1 | 7.5±0.1 | 11.0±0.2 | 14.0±0.3 |
| 4 | 304/316 | 12.5 | 9.8±0.1 | 14.0±0.2 | 18.0±0.3 |
| 5 | 304/316 | 19.0 | 12.0±0.1 | 17.0±0.2 | 22.0±0.3 |
| 6 | 304/316 | 27.5 | 14.5±0.1 | 20.0±0.2 | 26.0±0.4 |
| 8 | 304/316 | 48.0 | 18.0±0.2 | 25.0±0.3 | 34.0±0.5 |
| 10 | 304/316 | 75.0 | 22.0±0.2 | 30.0±0.3 | 42.0±0.6 |
| 12 | 304/316 | 108.0 | 26.0±0.3 | 36.0±0.4 | 50.0±0.7 |
| 14 | 304/316 | 147.0 | 30.0±0.3 | 42.0±0.4 | 58.0±0.8 |
| 16 | 304/316 | 192.0 | 34.0±0.3 | 48.0±0.5 | 66.0±1.0 |
| 18 | 304/316 | 243.0 | 38.0±0.4 | 54.0±0.6 | 74.0±1.2 |
| 20 | 304/316 | 300.0 | 42.0±0.4 | 60.0±0.6 | 82.0±1.5 |
| 25 | 304/316 | 469.0 | 52.0±0.5 | 75.0±0.8 | 103.0±2.0 |
| 30 | 304/316 | 675.0 | 62.0±0.6 | 90.0±1.0 | 124.0±2.5 |
| 35 | 304/316 | 919.0 | 72.0±0.7 | 105.0±1.2 | 145.0±3.0 |
| 40 | 304/316 | 1200.0 | 82.0±0.8 | 120.0±1.5 | 166.0±3.5 |
| Item |
Stainless Steel Link Chain |
| Standard |
DIN5685A/C; DIN763; DIN764; DIN766; JIS; Korea Standard |
| Material |
AISI302/AISI304(EN1.4301)/AISI316(EN1.4401) etc. |
| Size |
M1.5-40.0mm; 1/16-1-1/2inch |
| Length |
10M/20M/50M/100M; 50FT/100FT/150FT/200FT/300FT; as per customers' requests |
| Conditions |
Bright; Smooth |
| Tensile |
690Mpa-1570Mpa |
| Packing |
In bulk; Plywood reel; Iron drum; Pallet or Crate |
