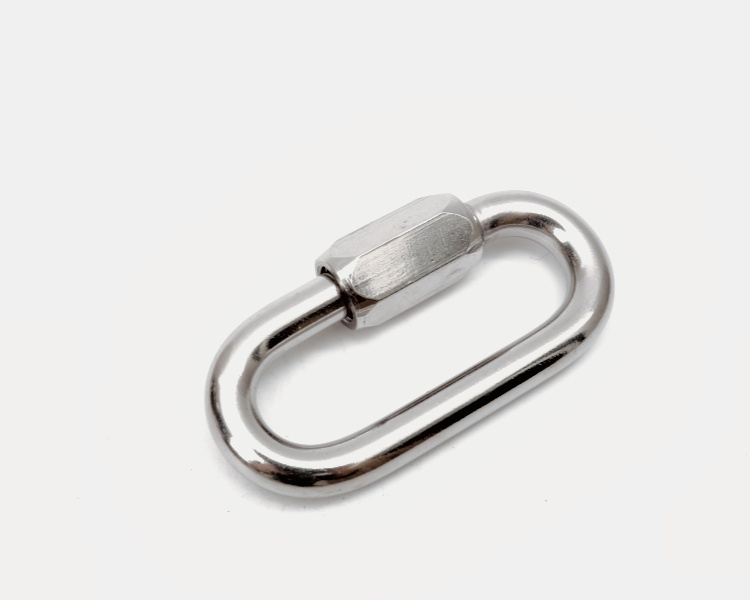

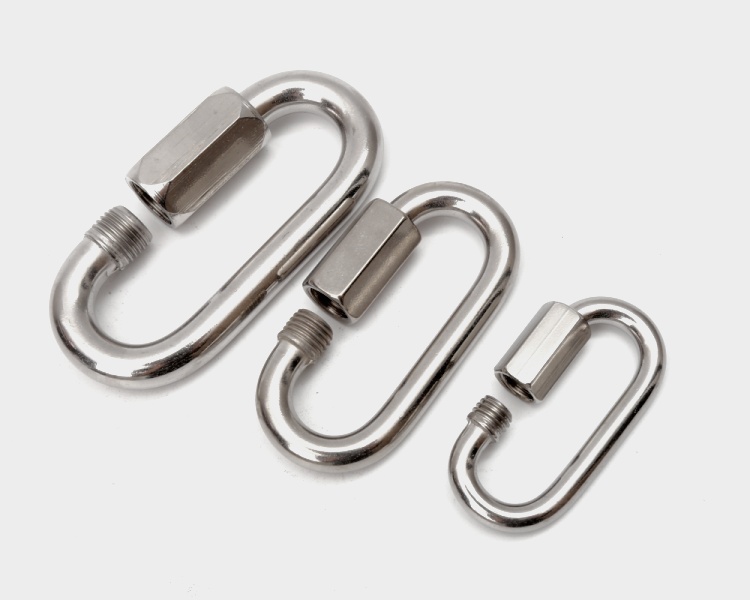

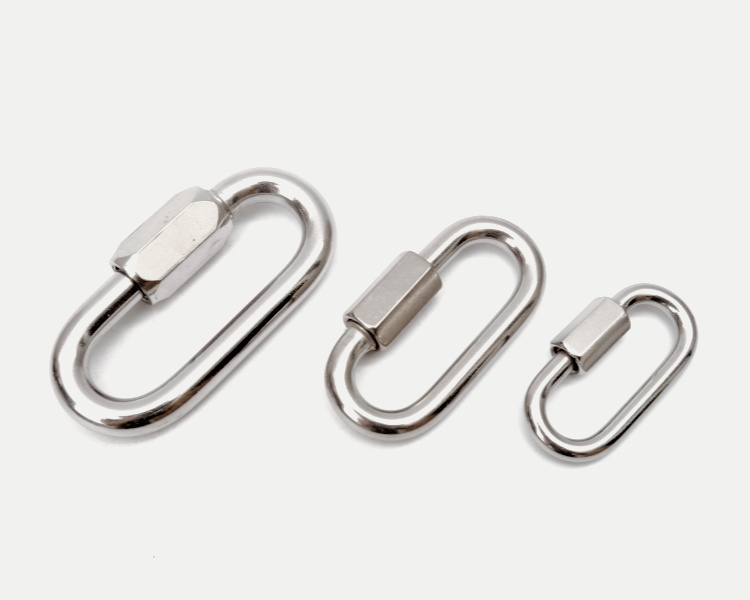

A stainless steel quick link, also known as a stainless steel quick-release link or stainless steel quick coupler, is a type of connector commonly used in various applications where a secure and easy-to-use connection is required. It is made from stainless steel, which offers excellent corrosion resistance and durability.
Stainless steel quick links offer high tensile strength and are suitable for use in harsh environments and corrosive conditions. The stainless steel material used in quick links provides several benefits. It offers excellent resistance to rust, corrosion, and staining, ensuring long-lasting performance. Stainless steel quick links are also easy to clean and maintain, adding to their durability and reliability. When selecting a stainless steel quick link, it is important to consider factors such as the load capacity, size, and intended application. Different grades of stainless steel may be available, each with its own characteristics and corrosion resistance properties.
| Size | Thickness(mm) | Outer Length(mm) | Opening Size(mm) | Outer Width(mm) | Nut Thickness(mm) |
|---|
| M3 | 3 | 32 | 4 | 15.7 | 4 |
| M3.5 | 3.5 | 37 | 5.8 | 17.9 | 5.1 |
| M4 | 4 | 42.2 | 7.2 | 20.4 | 6.1 |
| M5 | 5 | 50.2 | 6 | 23.5 | 7.2 |
| M6 | 6 | 58 | 7.8 | 27.2 | 9 |
| M7 | 7 | 66 | 9.5 | 31 | 10.1 |
| M8 | 8 | 74 | 9.7 | 34.4 | 11.5 |
| M9 | 9 | 84 | 11.4 | 38.4 | 11.8 |
| M10 | 10 | 89.8 | 13.8 | 41.3 | 12.2 |
| M11 | 11 | 99 | 15 | 45 | 14.6 |
| M12 | 12 | 105 | 15.2 | 48.2 | 14.6 |
| M14 | 14 | 122 | 18.4 | 57 | 17.8 |
| Item |
Stainless Steel Quick Link |
| Type |
Quick Link |
| Material |
AISI302/AISI304(EN1.4301)/AISI316(EN1.4401) etc. |
| Size |
M2.0-32.0mm |
| Conditions |
Bright; Smooth |
| Packing |
PE plastic bag; Carton; Pallet or Crate; as per customers' requests |
