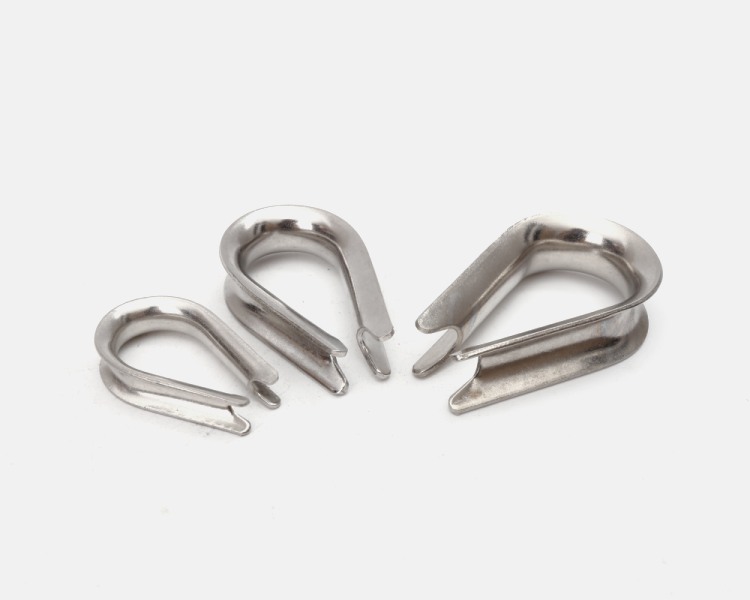

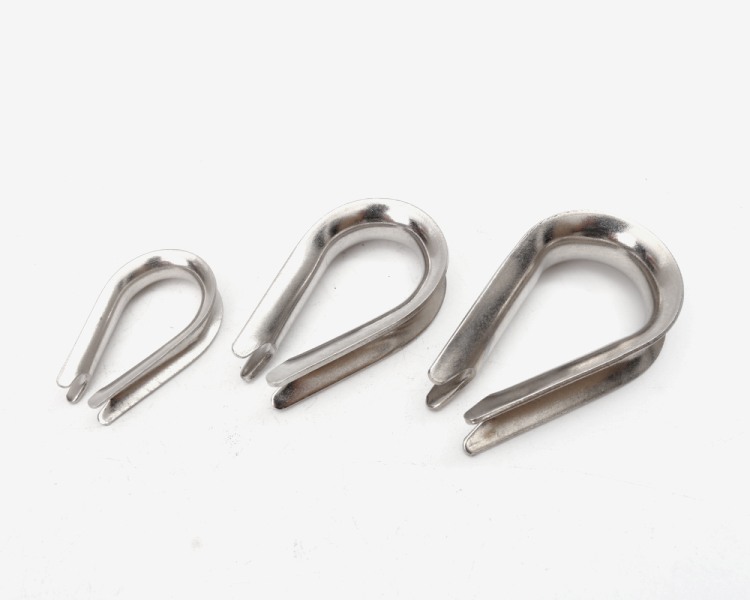

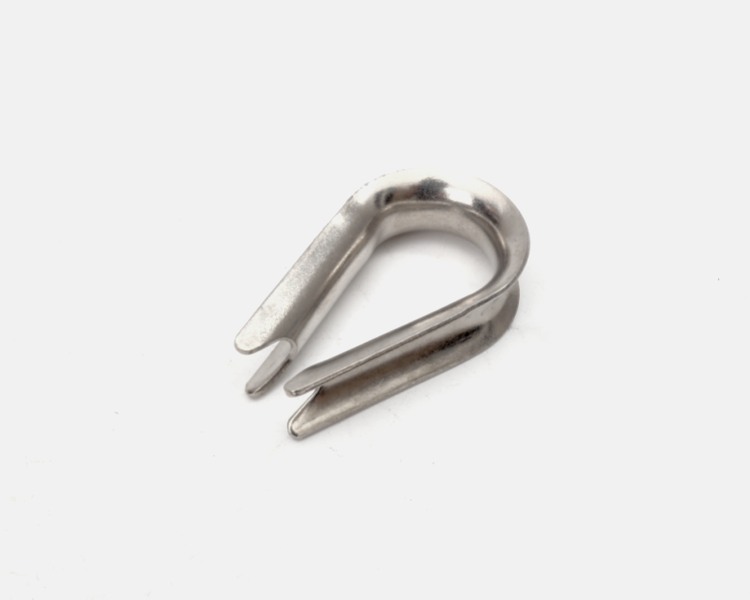

KooChii® stainless steel wire rope thimbles are made of 304/316 stainless steel. Starting with the most corrosion resistant, stainless steel thimbles are best suited for being used in outdoor applications and are highly resistant to rust. Stainless Steel thimbles are also ideal for being used in or near saltwater environments where corrosion frequently occurs, and are the best choice when using stainless steel wire rope.
Stainless steel wire rope thimbles are used to support wire rope eyes by creating a durable wear surface when connected to mating rigging hardware. The wire rope eye also helps prevent pinching, crushing, and fraying of the wire rope eye while in use. Thimbles can be used with swage sleeves, U-bolt wire rope clips or fist grip wire rope clamps.
Warning: Avoid to use with coated rope unless the coating is removed.
| Size | Thickness(mm) | Groove Dia(mm) | Inner Length | Total Length(mm) | Inner Width(mm) | Weight(gram) |
|---|
| M2 | 1 | 3 | 14.5 | 20 | 8 | 2 |
| M3 | 1 | 4 | 17.5 | 26 | 10 | 2 |
| M4 | 1.2 | 5 | 18 | 23 | 10.5 | 3 |
| M5 | 1.2 | 6 | 25.2 | 31 | 13.5 | 5 |
| M6 | 1.2 | 7 | 27 | 35.2 | 15.2 | 6 |
| M8 | 1.5 | 9 | 35 | 44 | 18 | 12 |
| M10 | 1.5 | 11 | 48.5 | 56.2 | 22.5 | 23 |
| M12 | 2 | 13 | 52.5 | 60.5 | 26 | 30 |
| M14 | 2.2 | 15 | 60 | 68 | 33 | 59 |
| M16 | 2 | 17 | 72 | 78.2 | 39 | 83 |
| M18 | 2.5 | 19 | 78 | 85 | 42 | 110 |
| M20 | 3 | 21 | 86 | 96 | 46 | 166 |
| M22 | 3 | 23 | 98 | 111 | 53 | 201 |
| M24 | 4 | 25 | 108 | 124 | 56 | 344 |
| M26 | 4 | 27 | 114 | 134 | 62 | 370 |
| M28 | 4.5 | 29 | 126 | 145 | 65 | 583 |
| M32 | 4.8 | 33 | 155 | 166 | 81 | 776 |
Technical Specifications:
- Materials: AISI 304 (Standard) / AISI 316 (Marine Grade, +20% corrosion resistance)
- Tolerances:
- Dimensions: ±0.3mm (≤5mm), ±0.5mm (>5mm)
- Weight: ±5%
| Item |
Stainless Steel Wire Rope Thimble |
| Type |
DIN6899A; DIN6899B; BS464; G411; G414 etc. |
| Material |
AISI304(EN1.4301)/AISI316(EN1.4401) etc. |
| Size |
M2.0-32.0mm |
| Conditions |
Bright; Smooth |
| Packing |
PE plastic bag; Carton; Pallet or Crate; as per customers' requests |
