A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread. The tension can be adjusted by rotating the frame, which causes both eye bolts to be screwed in or out simultaneously, without twisting the eye bolts or attached cables.
Whether you are using a small turnbuckle or a large turnbuckle, they should be used for straight or inline pulling, and tensioning only. We pride ourselves on providing our customers with only the highest quality industrial stainelss steel turnbuckles and turnbuckle hardware, from only the most reputable manufacturers. If you are unable to find what you are looking for, or if you don’t know exactly what you need, call or email our sales team. KooChii® supplies stainless steel turnbuckles whose threaded bolts come with a wide variety of end fittings and attachments including jaws, eyes, clevises, hooks and many more.
Turnbuckle with Eye and Jaw
Size | Body Length(mm) | Min Length(mm) | Max Length(mm) | Hook Dia(mm) | Opening Size of Hook(mm) |
---|
M4 | 63 | 110 | 155 | 10.4 | 7.8 |
M5 | 75 | 124 | 190 | 9.1 | 6.9 |
M6 | 94 | 150 | 220 | 11.9 | 10 |
M8 | 125 | 195 | 285 | 13.1 | 11.1 |
M10 | 155 | 235 | 355 | 15.9 | 11.8 |
M12 | 200 | 300 | 455 | 19.5 | 15.5 |
M14 | 220 | 340 | 500 | 22.4 | 16 |
M16 | 250 | 400 | 590 | 26.1 | 19.3 |
M18 | 270 | 420 | 610 | 26.3 | 18.3 |
M20 | 290 | 460 | 700 | 28.4 | 24.3 |
M22 | 330 | 490 | 740 | 28.2 | 23.8 |
M24 | 355 | 530 | 780 | 32 | 24 |

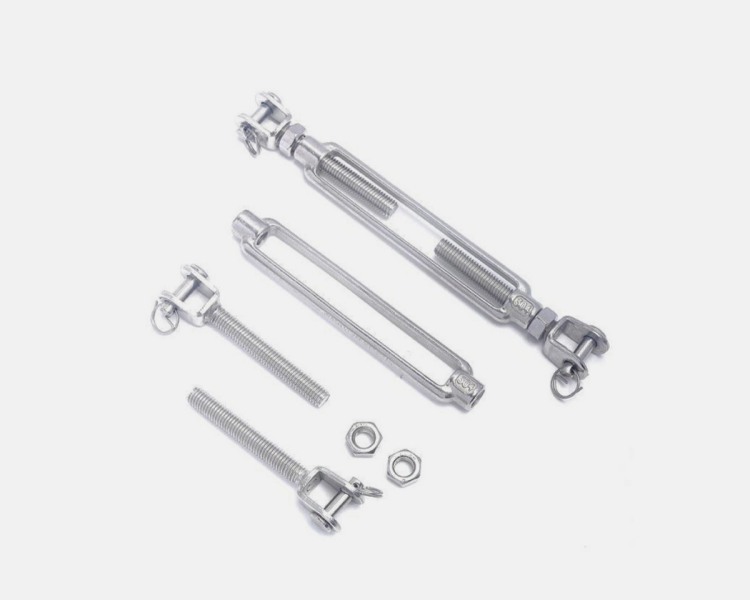

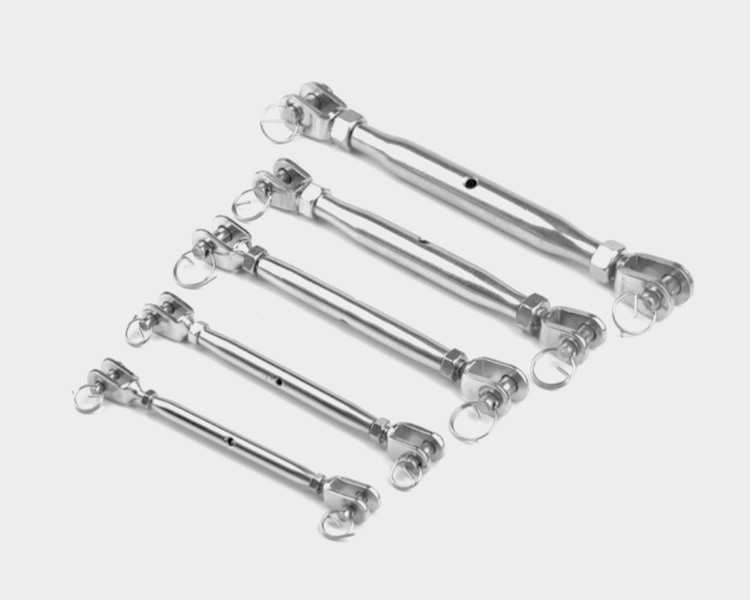

Remark: Open body; Closed body; Eye&Jaw; Eye&Eye; Jaw&Jaw; Fork&Fork.
Item |
Stainless Steel Turnbuckle |
Standard |
DIN; US Type; JIS |
Type |
Open body; Closed body; Eye&Jaw; Eye&Eye; Jaw&Jaw; Fork&Fork |
Material |
AISI302/AISI304(EN1.4301)/AISI316(EN1.4401) etc. |
Size |
M3.0-30.0mm |
Conditions |
Bright; Smooth |
Packing |
PE plastic bag; Carton; Pallet or Crate; as per customers' requests |
