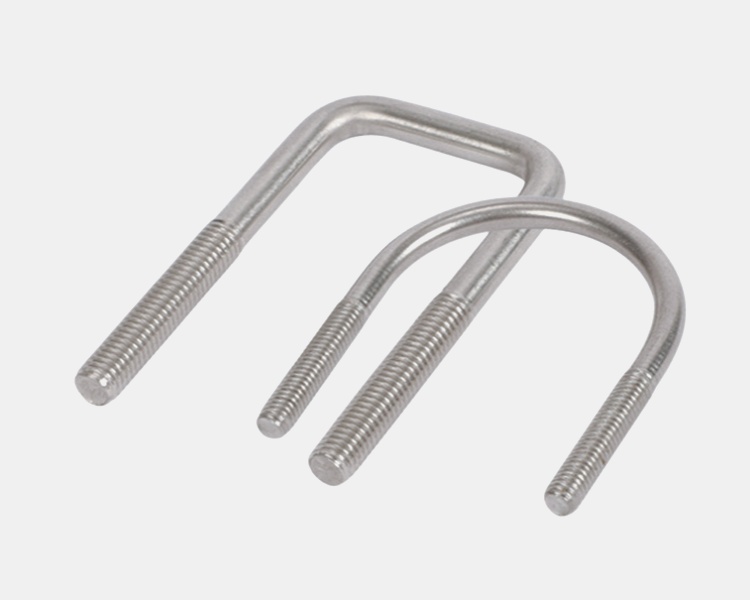

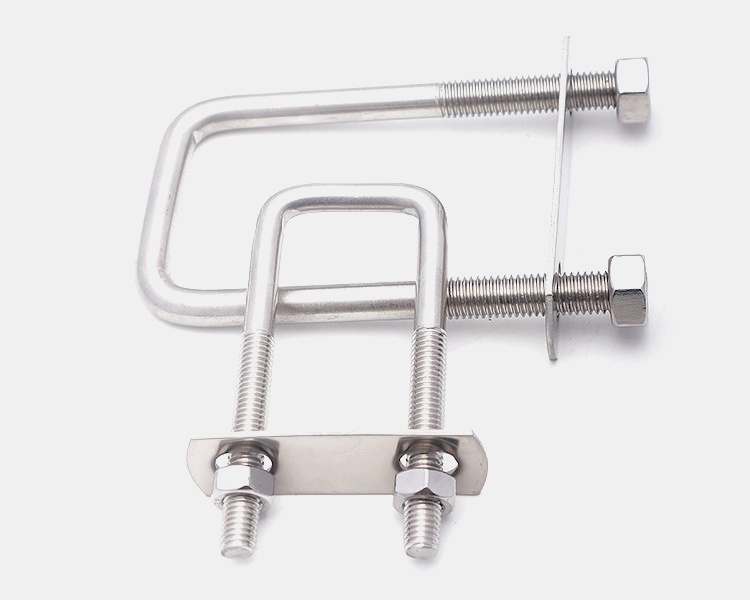

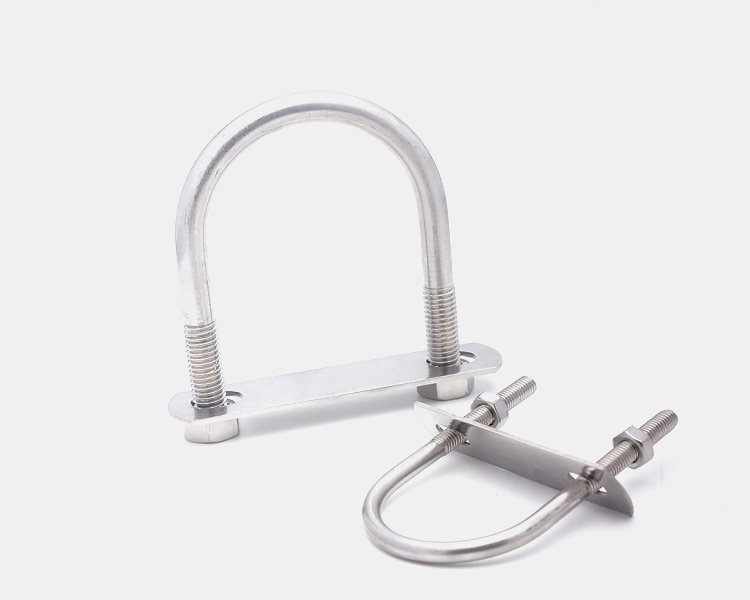

Stainless steel U bolts offer corrosion resistance, strength, and durability, making them suitable for a wide range of applications. When choosing U bolts, consider the required load capacity, thread type, and material grade to ensure a suitable fit for your specific application.
Here are some common specifications and dimensions of stainless steel U bolts:
Thread Size: U bolts are available in different thread sizes, typically measured in metric (M) or imperial (UNC, UNF) units. Common thread sizes include M6, M8, M10, 1/4", 5/16", 3/8", and 1/2".
Thread Pitch: The thread pitch refers to the distance between adjacent threads on the bolt. Metric threads typically have a coarse pitch (e.g., M6 x 1.0), while imperial threads may have fine or coarse pitches (e.g., 1/4-20 or 1/4-28).
Bolt Diameter: The diameter of the U bolt is measured across the straight portion of the bolt. Common diameters range from 6mm (1/4") to 20mm (3/4") or larger, depending on the application.
U Bend Dimensions: The U bend dimensions include the inside width and height of the U-shaped portion. These dimensions vary based on the bolt diameter and application requirements. Typical inside widths range from 10mm (3/8") to 50mm (2") or more.
Length: The overall length of the U bolt is measured from the tip of the U bend to the end of the threading.Lengths can vary depending on the specific application, ranging from a few centimeters to several meters.
Material Grade: Stainless steel U bolts are available in different grades, such as 304 or 316, which indicate the composition and corrosion resistance of the stainless steel. The grade selection depends on the environment and corrosive conditions the U bolt will be exposed to.
It's important to note that specific U bolt specifications may vary depending on the manufacturer and application. When selecting U bolts, ensure that you choose the appropriate size, thread pitch, material grade, and dimensions based on your specific requirements and the compatibility with the mating components.
