The stainless steel swivel consists of a loop or eye at one end and a hook or attachment point at the other end. The loop is typically designed to rotate freely, allowing for freedom of movement and reducing twisting or binding. The hook or attachment point can be used to connect the swivel to another component, such as a rope, chain, or hardware. The stainless steel material used in swivels offers several benefits. It provides excellent resistance to rust, corrosion, and staining, ensuring long-lasting performance even in harsh environments. Stainless steel swivels are also highly resistant to wear and tear, making them suitable for heavy-duty applications. Overall, stainless steel swivels are a versatile and practical connector solution that offers durability, corrosion resistance, and freedom of movement in a wide range of applications. Their reliability and strength make them a popular choice for many industries and activities.
KooChii® is able to supply kinds of types of stainless steel swivels of which size varies from M3.0mm to M28.0mm.

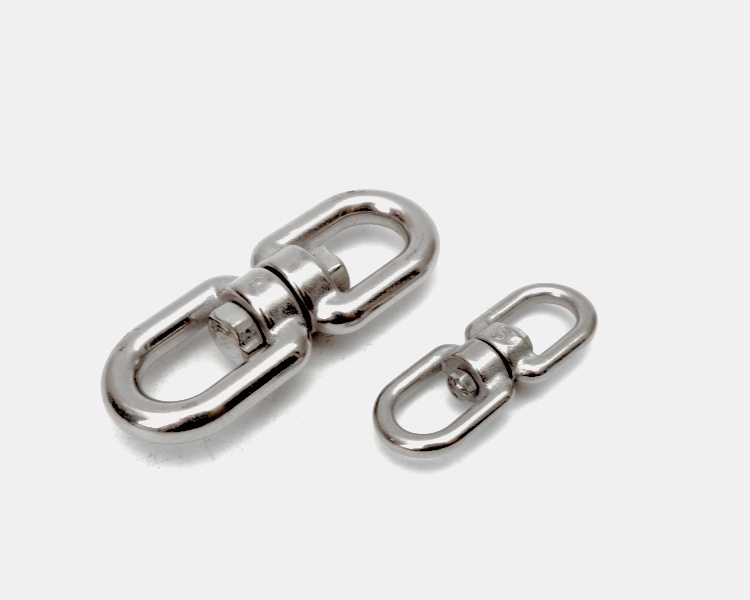

Swivel(eye & eye)
| Size | Thickness(mm) | Inner Width(mm) | Inner Height(mm) | Total Length(mm) |
|---|
| M3 | 2.7 | 9.2 | 8 | 35 |
| M4 | 4 | 11.5 | 9.6 | 47 |
| M5 | 5 | 13.7 | 14.6 | 59.3 |
| M6 | 5.7 | 15.4 | 15.8 | 67 |
| M8 | 7.2 | 20.3 | 21.4 | 86.8 |
| M10 | 8.9 | 23.3 | 25.8 | 106 |
| M12 | 10.6 | 25.5 | 27.8 | 121 |
| M14 | 11.9 | 30.6 | 33.4 | 148 |
| M16 | 13.7 | 39 | 46 | 177 |
| M18 | 16, 8 | 37.4 | 50.5 | 200 |
| M20 | 17 | 40.2 | 49 | 208 |
| M22 | 20.8 | 45 | 62 | 255 |
| M25 | 24 | 58 | 73 | 290 |
| M28 | 26 | 70 | 72 | 330 |
| Item |
Stainless Steel Swivel |
| Type |

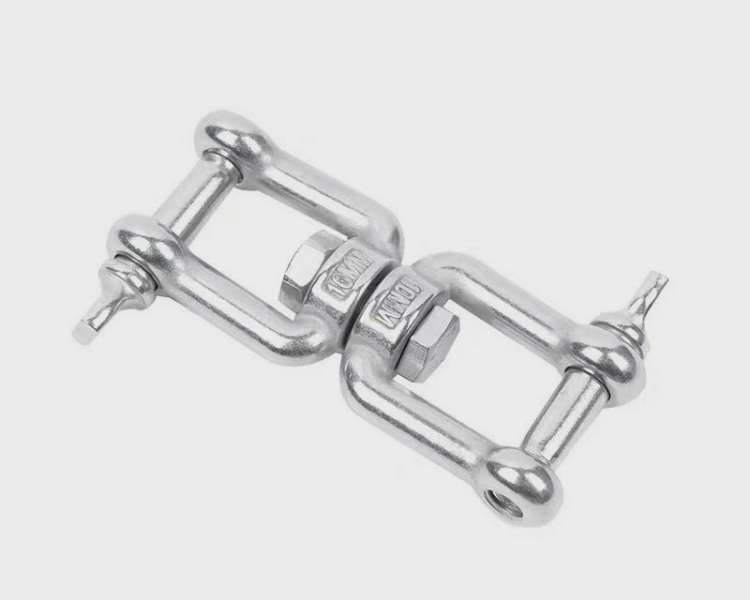

Eye&Eye; Eye&Jaw |
| Material |
AISI302/AISI304(EN1.4301)/AISI316(EN1.4401) etc. |
| Size |
M3.0-28.0mm |
| Conditions |
Bright; Smooth |
| Packing |
PE plastic bag; Carton; Pallet or Crate; as per customers' requests |
